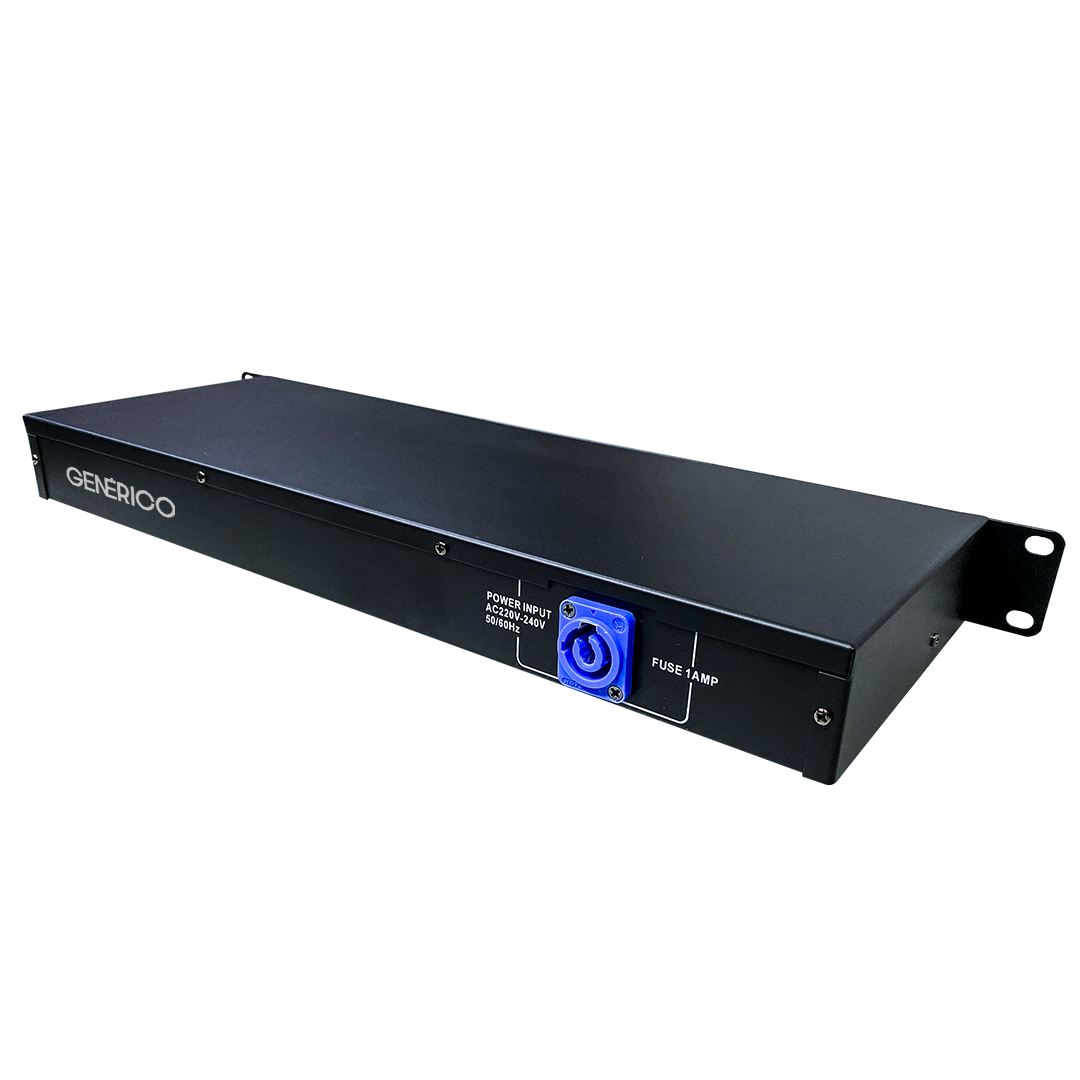

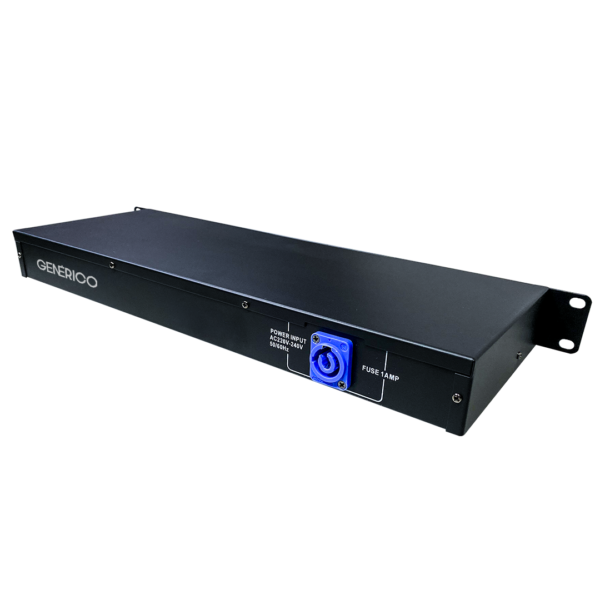

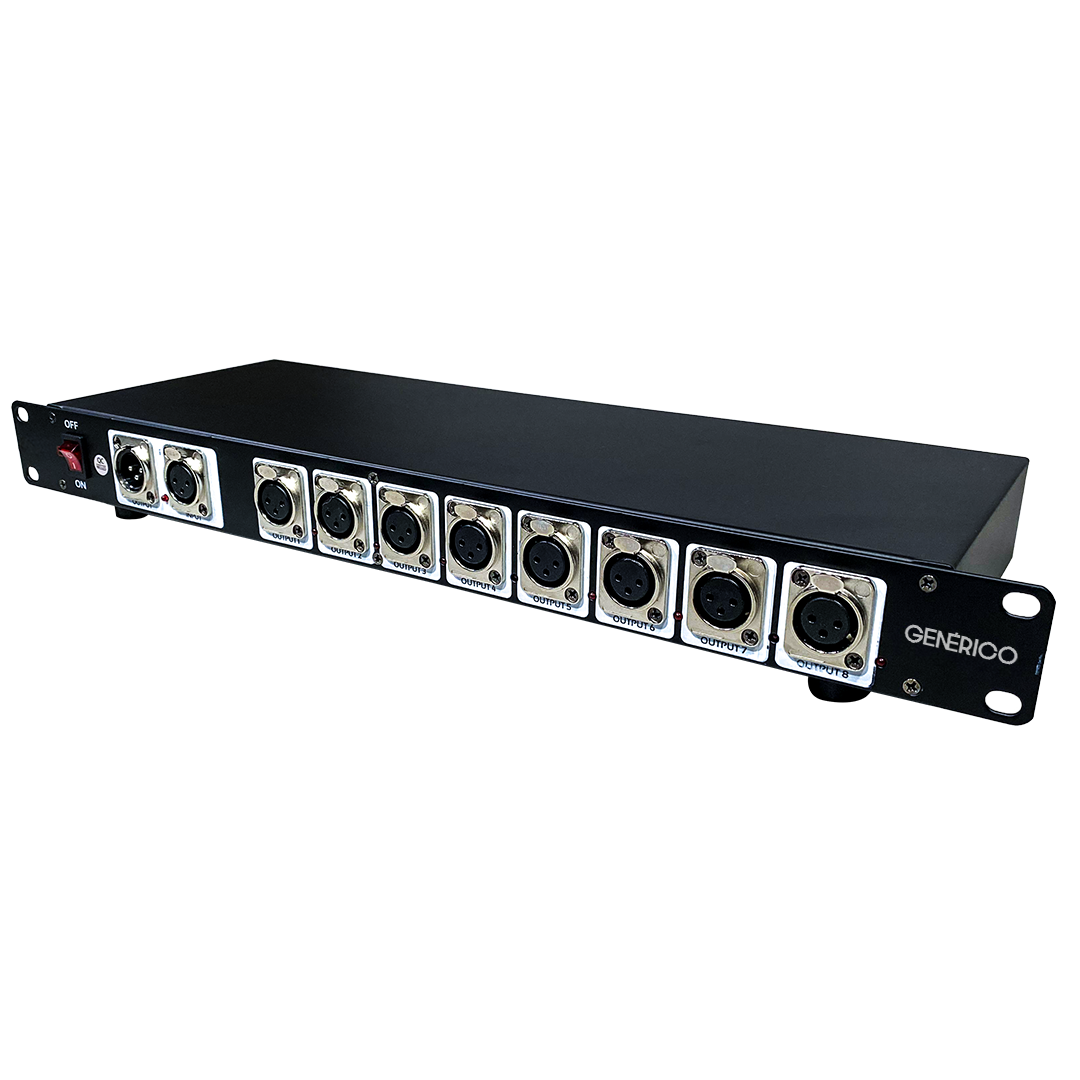

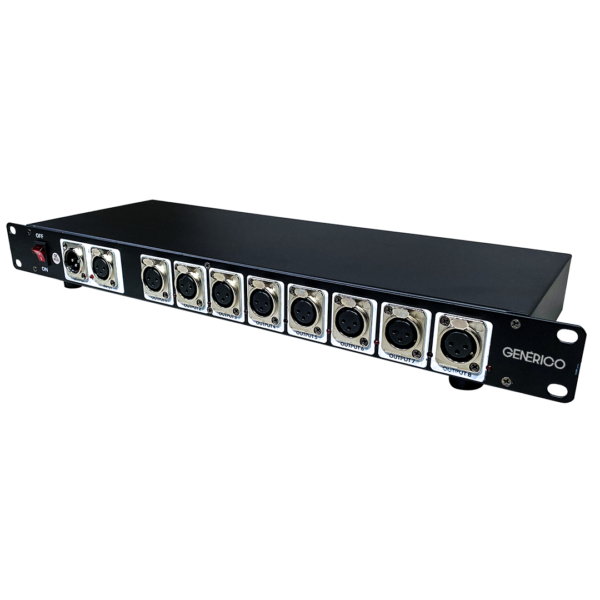

AMPLI 8 DMX

The AMPLI 8 DMX Splitter is a DMX512 distribution amplifier specifically designed for connecting DMX receivers.

Technical Specifications

• Fully compatible with the DMX-512 specification, featuring a 3-pin XLR input and a passive loop.
• Isolated 4- or 8-way DMX splitter output.
• Input is isolated from the outputs at over 1000VDC.
• Outputs are isolated from each other at over 1000VDC.
• Power supply: 220 VAC 50Hz ±10%, 15W.
• 19-inch rack mount, 1U high.
