TM AMPLI

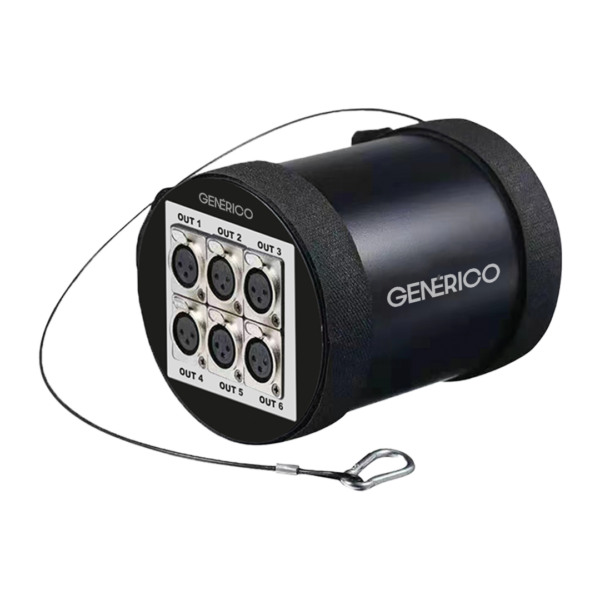

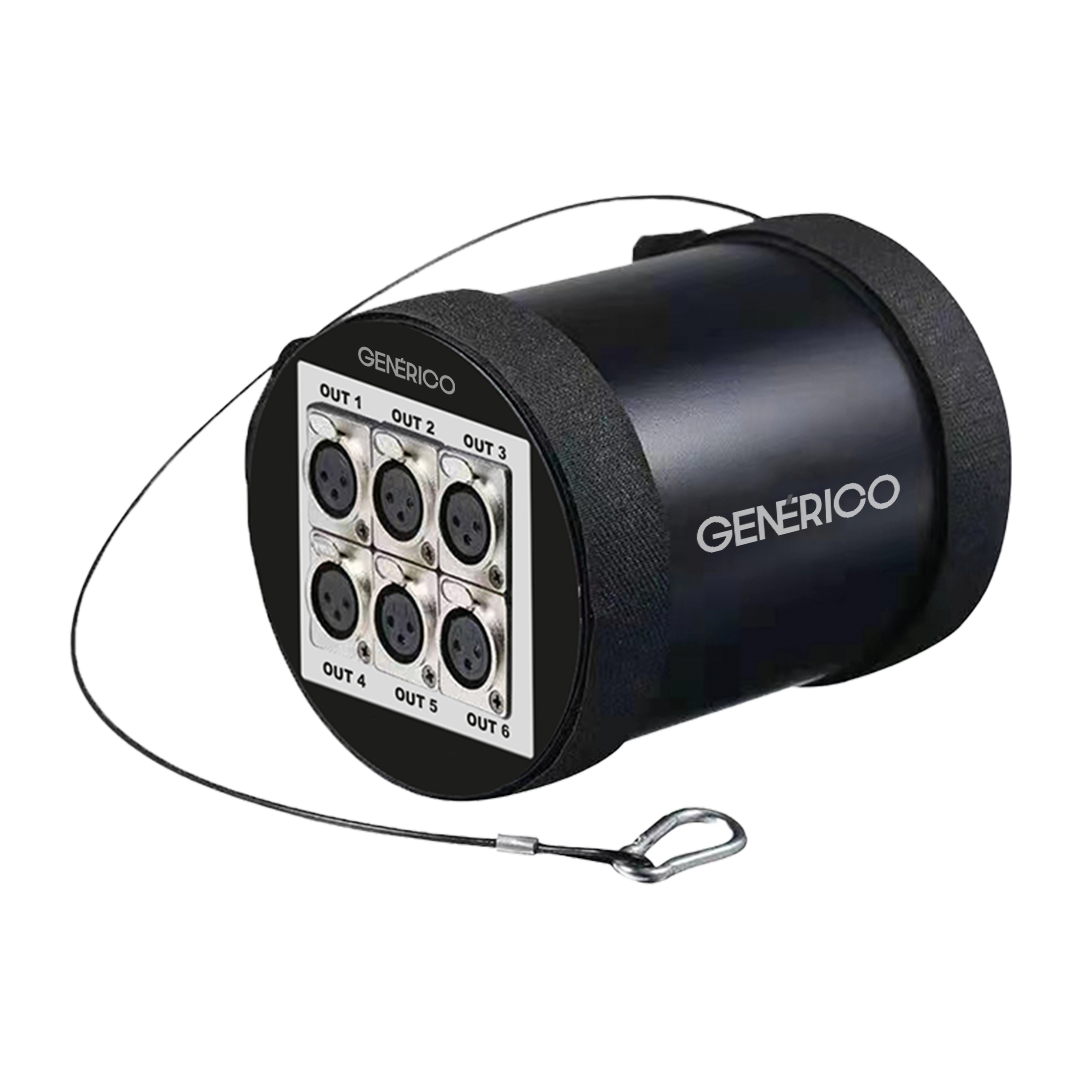

DMX512 Amplifier | 6-Output Isolated DMX Splitter, Truss Mount

Technical Specifications

• Fully compatible with the DMX-512 specification.
• 3-pin XLR input and a passive loop.
• 6-way isolated DMX outputs.
• Input is isolated from the outputs at over 300V AC.
• Outputs are isolated from each other at over 300V AC.
• Includes 6 separate modules for easy maintenance.

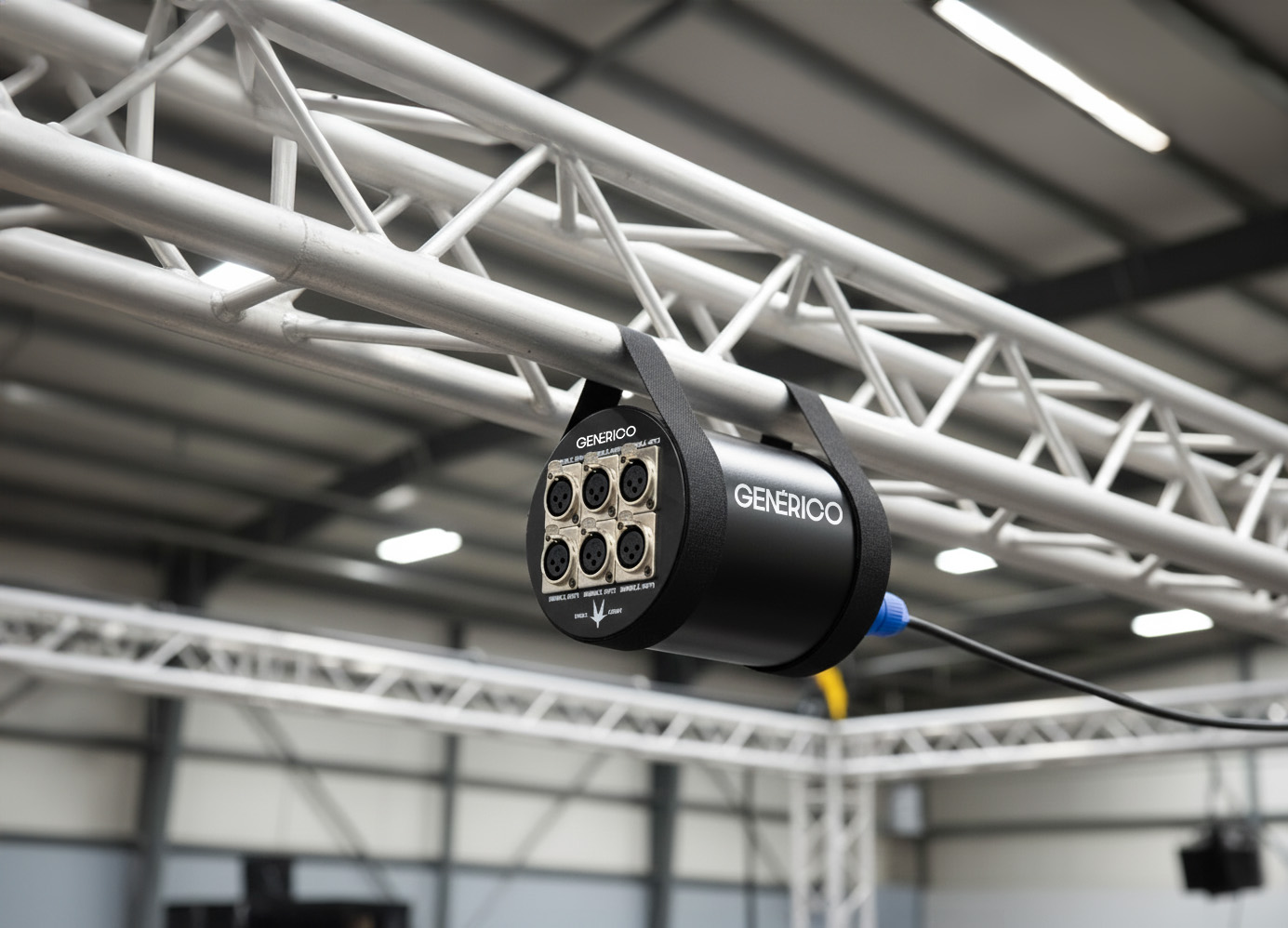

• Equipped with Velcro straps for simple installation.
• Safety cable is included.
• Power supply: 100-240 V, 50/60 Hz, 15 W.
